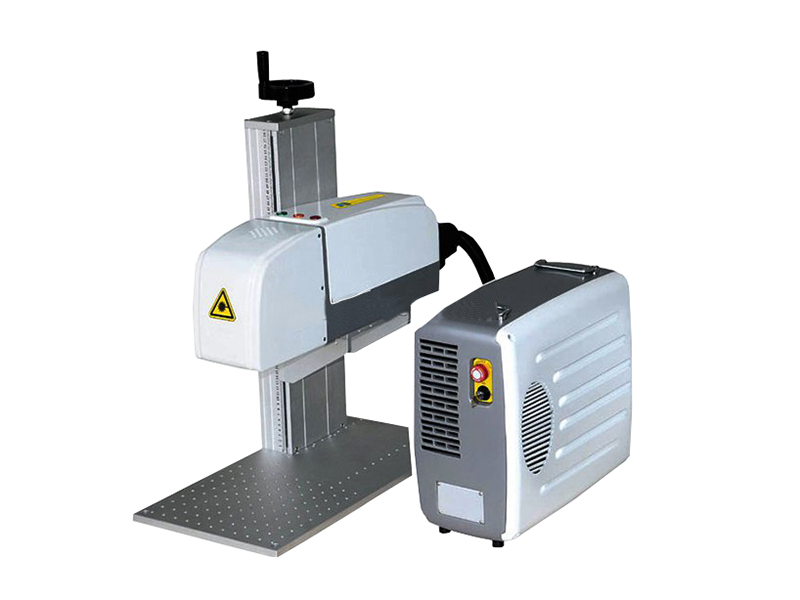

3D FIBER LASER MARKING MACHINE
3D laser marking machine with IPG fiber source is suitable for all kinds of metal and nonmetal materials laser marking on 3D surface.
3D fiber laser marking machine features:
1. High precision of 3D positioning technology, high-speed focusing and scanning system, short pulse, high-peak power and HPRF(High Pulse Repetition Frequency).
2. With friendly operation interface, it is suit for many file formats, such as dxf,plt,cnc,step,iges,etc.
3. High electro-optic conversion efficiency, long life and easy maintenance.
4. Fast marking speed and high processing efficiency.
5. High strength cast machine structure
Application of 3D laser marking machine with fiber laser source:
3D laser marking machine is suitable for all kinds of metal and nonmetal materials laser marking on 3D surface. It’s widely used in mobile manufacture, cubic circuits, medical equipments, moulds, 3C electronics, auto parts, electronic communication, etc.
3D fiber laser marking machine technical parameters:
| Laser Parameter | Laser Source | IPG 30W Fiber laser | |
| Wavelength | 1064nm | ||
| Output Power | 30W | ||
| Laser Beam Quality M2 | <1.2 | ||
| Pulse Repeatable Frequency | 10kHz~200kHz | ||
| Cooling Method | Air cooling | ||
| Processing Parameter | Focusing Lens | Standard | Optional |
| Processing Range | 140×140×60mm | 160×160×70mm | |
| Lens Focal Length | 200mm | 254mm | |
| Max Speed in X-Y Axis | 6m/s | ||
| Max Speed in Z Axis | 4m/s @45° | ||
| Min Linear Width | 150μm | ||
| Positioning Accuracy | 25μm | ||
| Contraposition Accuracy | 20μm | ||
| Whole Machine Parameter | Operating Ambient Temperature | 18~28℃ | |
| Power Demand | Single phase AC220V 10A | Three phase AC380V
10A |
|
| Overall Power Consumption | 3KW | ||
| Dimension | Mainframe 1200×1000×1610mm | ||
3D FIBER LASER MARKING MACHINE VIDEO

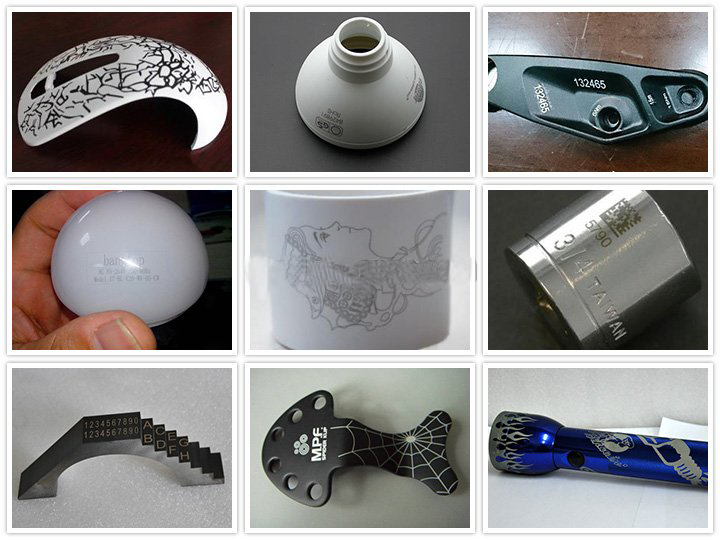

Sample of 3D Fiber Laser marking machine
